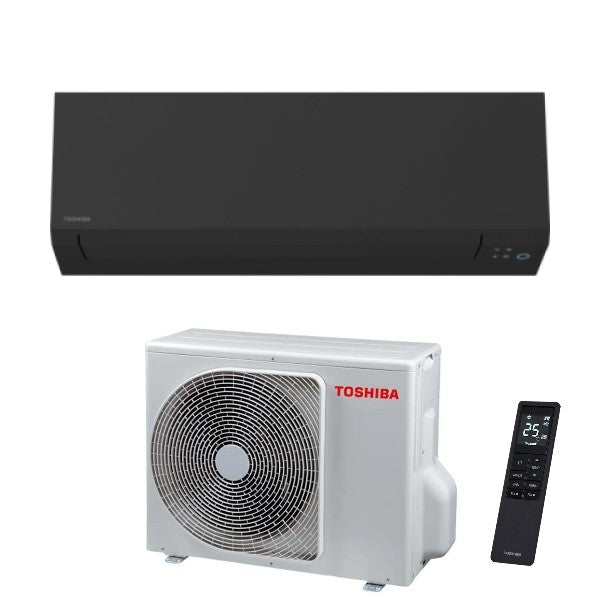

Toshiba Inverter Air Conditioner Shorai Edge series 10000 (9000) btu Black A+++/A+++ Integrated Wi-Fi Smart Voice RAS-10J2AVSG-E1/RAS-B10G3KVSGB-E - NEW

Toshiba Inverter Air Conditioner Shorai Edge series 10000 (9000) btu Black A+++/A+++ Integrated Wi-Fi Smart Voice RAS-10J2AVSG-E1/RAS-B10G3KVSGB-E - NEW

Technical features

Model :

• Indoor Unit Code: RAS-B10G3KVSGB-E
• Outdoor Unit Code: RAS-10J2AVSG-E1
• Integrated Wi-Fi Alexa Google Home
• Black colour

Cooling performance

• Nominal Capacity: 2.50 kW
• Min - Max capacity: 0.89 / 3.02 kW
• Absorbed Power (Min - Nominal - Max): 0.19 - 0.54 - 0.79 kW
• SEER: 8.6W
• Energy Efficiency Class: A+++
• Annual energy consumption 102 kWA

Heating performance

• Nominal Capacity: 3.2 kW
• Min - Max capacity: 0.90 / 4.80 kW
• Absorbed Power (Min - Nominal - Max): 0.16 - 0.70 -1.23 kW
• SCOP : 5.1W
• Energy Efficiency Class: A+++
• Annual energy consumption 686 kWA

Indoor unit features:

• Air flow (a) (CH) m3/h 660 - 660
• Sound pressure level (qa) (C) dB (A) 19 - 40
• Sound power level (CH) dB (A) 53 - 53
• Dimensions (H × W × D) 293 x 800 x 226 mm; 10kg

Outdoor unit features:

• Air flow (a) (CH) m3/h 1890 - 1890
• Sound pressure level (CH) dB (A) 44 - 46
• Operating range (C) °C -15 ÷ 46
• Operating range (H) °C -15 ÷ 24
• Dimensions (H × W × D) mm 550 x 780 x 290; 26kg
• Liquid/gas pipe diameter 1/4 - 3/8
• Maximum height difference 12 m

SHORAI EDGE

WELCOME TO ENERGY CLASS A+++

SHORAI EDGE has been designed to offer optimal comfort in A+++ heating and cooling modes, allowing real energy savings.

BEAUTY INSIDE

BEAUTIFUL INTERIORS WITH A NEW ELEGANT AND CONTEMPORARY DESIGN. WITH ITS SQUARE LINES, MATT FINISHES AND INVISIBLE PRE-BLANKS FOR THE PASSAGE OF PIPES, THE NEW SHORAI EDGE ADAPTS PERFECTLY TO ANY TYPE OF INTERIOR.

Toshiba's modulated power (inverter) technology allows SHORAI Edge to adjust the heating and cooling capacity at any time, adapting the compressor speed to actual demand.

The Wi-Fi module present on all indoor units is invisible, thanks to the integrated wireless adapter. The Toshiba Home AC Control app gives you total control of the functions that ensure your comfort. Once installed on your smartphone or tablet, it will be simple to use, both at home and away.

The Toshiba remote control offers control functions, including preset ones, such as the power selection function and the ECO function to reduce energy costs, the COMFORT SLEEP function to optimize the room temperature during the night and the HIGH-POWER function to quickly heat or cool rooms.

SHORAI Edge is an intuitive and very simple to use system. After the automatic restart, it memorizes the position of the ventilation flaps, restoring the direction already set by the user, reducing discomfort and optimizing comfort.
It automatically resumes operation after any blackouts, starting the internal self-diagnostic function. The LEDs on the unit allow the user to see at a glance which functions are active.

The functions of SHORAI Edge are designed to allow the user to achieve ideal comfort and to achieve energy savings:

• HADA CARE Adjusts the position of the ventilation fins to generate an indirect flow, improving air distribution and evening out the room temperature.
• ULTRA PURE FILTER Toshiba's Ultra Pure filter is able to retain up to 94% of fine particulate matter (PM2.5), thus creating a healthier environment within living spaces (1).
• 3D AIRFLOW The unit features the intelligent 3D airflow system, with independent ventilation flaps and 6 preset blows, for unlimited comfort (sizes 18, 22 & 24 only).
• QUIET OPERATION (outdoor unit) Toshiba's signature feature reduces the noise level of the outdoor unit by 6dB(A), to ensure the comfort of your neighbors.
• QUIET MODE (indoor unit) By pressing the FAN (fan) button, it will be possible to adjust the speed and set the Quiet operating mode, which guarantees a reduced noise level.
• WEEKLY TIMER The Weekly Timer allows you to set the on and off intervals or program daily settings. Up to 4 different settings/day and 7 different weekly programs are available.
• ANTI-FREEZE FUNCTION (8°C) Allows you to protect your home and furnishings from the effects of frost when you are away from home. It represents the ideal solution during the winter period.
• FIREPLACE FUNCTION IN HEATING MODE Toshiba's signature fireplace function offers optimal diffusion of heat generated by the fireplace or other heat sources by continuously operating the fan at low speed, even when the compressor is turned off.
• MANUAL ANTI-FROST FUNCTION In certain extreme conditions, it will be possible to manually start the anti-frost function at any time by pressing the SET button for 5 seconds.
• REMOTE CONTROL SUPPORT Inserted in all units to facilitate wall installation in light commercial applications.
• COMFORTABLE REST To ensure optimal comfort during sleep, by activating the "Sleep" function the temperature is increased by 1°C after one hour and by a further degree after 2 hours. Subsequently, the temperature reached will be maintained until the morning.

• Weight: 35.0 kg
• Cooling energy class: A+++
• Heating energy class: A+++
• Gas: R-32
• Length: 1
• Weight (kg): 35
• Power (BTU): 9000
